Comfort Colors Color Chart Explained: Pigment Pure vs Direct Dye Truths
By James H. Sterling

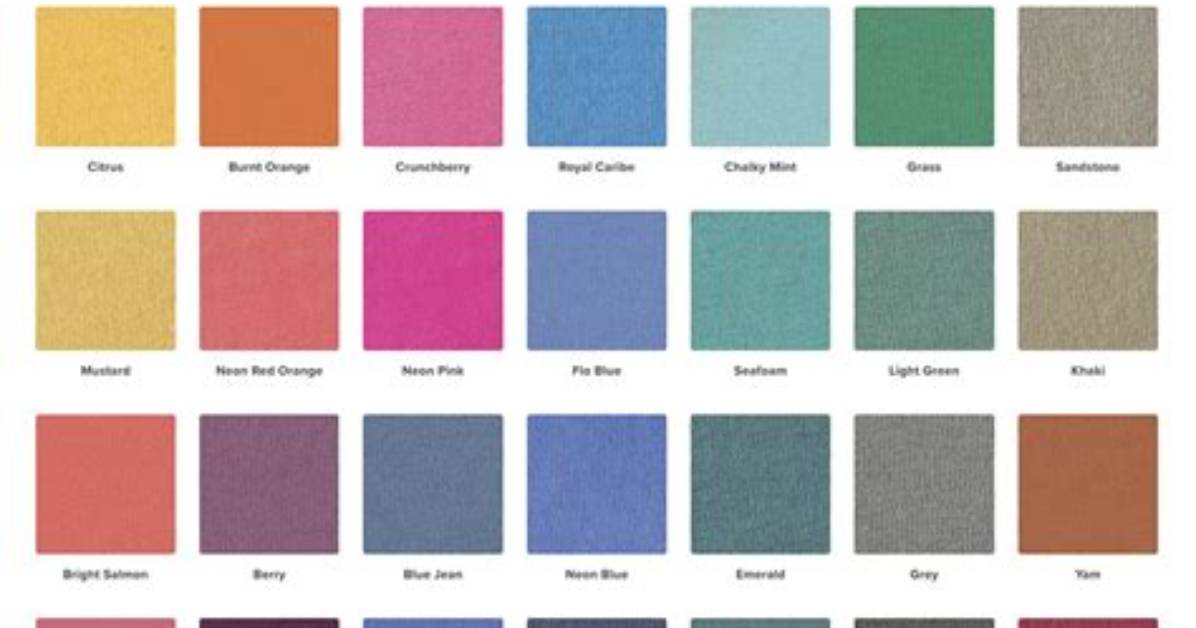

The Comfort Colors color swatch guide does not explicitly label shirts with chemical warnings, but the production differences are stark. Traditional pigment dyeing does not use soluble chemical dyes that soak into the fiber interior. Instead, insoluble pigment particles sit on the exterior ridges of the yarn, held in place by a liquid binding agent. During tumble washing, friction chips away microscopic pigment fragments, exposing the pale undyed core beneath. That deliberate abrasion generates the chalky, vintage washed aesthetic associated with tones like Crimson, Flo Blue, and Yam.
Reactive dyeing works through molecular synthesis. Rather than clinging mechanically to the outside surface, reactive dye molecules react directly with the hydroxyl groups of the cotton cellulose under alkaline conditions, forming covalent chemical bonds. The color becomes an inseparable part of the fiber itself. Comfort Colors employs reactive dyeing on its pure white and deep black variants, along with certain saturated shades where wash-off would lead to customer complaints.
Screen printers must treat these two fabrics as entirely different substrates:
| Dye Category | Bonding Mechanism | Wash Fastness Rating (1, 5 Scale) | Discharge Ink Compatibility |
|---|---|---|---|
| Pigment Pure Dye | External resin binder clinging to yarn exterior | 2.5, 3.2 (Progressive wash-down) | Incompatible (Will not discharge) |
| Direct / Reactive Dye | Covalent chemical bond with cellulose molecules | 4.2, 4.8 (High fade resistance) | Compatible on select reactive formulations |
Because pigment dyes sit topically, running a high-heat conveyor dryer past 320°F (160°C) can reactivate the binder resin or gasify volatile dye particles. This reaction pushes rogue color straight up into white plastisol ink layers, turning crisp typographic prints into muddy pink or pale gray mistakes.
