Cen-Tech 9-Function Multimeter Exposed: Truth Behind Harbor Freight's Best Seller
By James H. Sterling
A thorough budget multimeter teardown highlights why this instrument frequently fails when measuring direct current. The meter features two current input terminals: a low-current port shared with resistance measurements, and an unfused 10A jack. Inspecting the PCB traces reveals how the unit handles overcurrent events.
| Circuit Function | Factory Claimed Rating | Observed Teardown Component | Observed Risk Level |
|---|---|---|---|
| Low-Current Input | 200mA Fast-Acting | 5x20mm glass fuse (250V / 500mA) | Moderate: Glass can arc on inductive loads |
| High-Current Input | 10A DC (15 seconds max) | Direct thick wire shunt (No fuse installed) | Severe: Vaporization risk if shorted across mains |
| Mains Voltage Input | CAT II 600V / CAT I 1000V | No MOVs, no spark gaps, 1.5mm trace clearance | Critical: Creepage fails formal CAT II rules |
| Audible Continuity | Instant latching tone (<30Ω) | Unshielded piezoceramic disc | Negligible: Noticeable audio latency (~200ms) |
An internal fuse replacement on the mA rail requires fully dismantling the plastic shell. Users will find a standard 5x20mm glass cylinder fuse rated at 250V and 500mA. In professional meters from brands like Fluke or Klein, current inputs use heavy sand-filled ceramic fuses rated for 10,000 amps of breaking capacity to quench plasma arcs. The thin glass tube in the Cen-Tech will violently shatter into conductive soot if subjected to an energetic fault, bridging the gap it was meant to isolate.

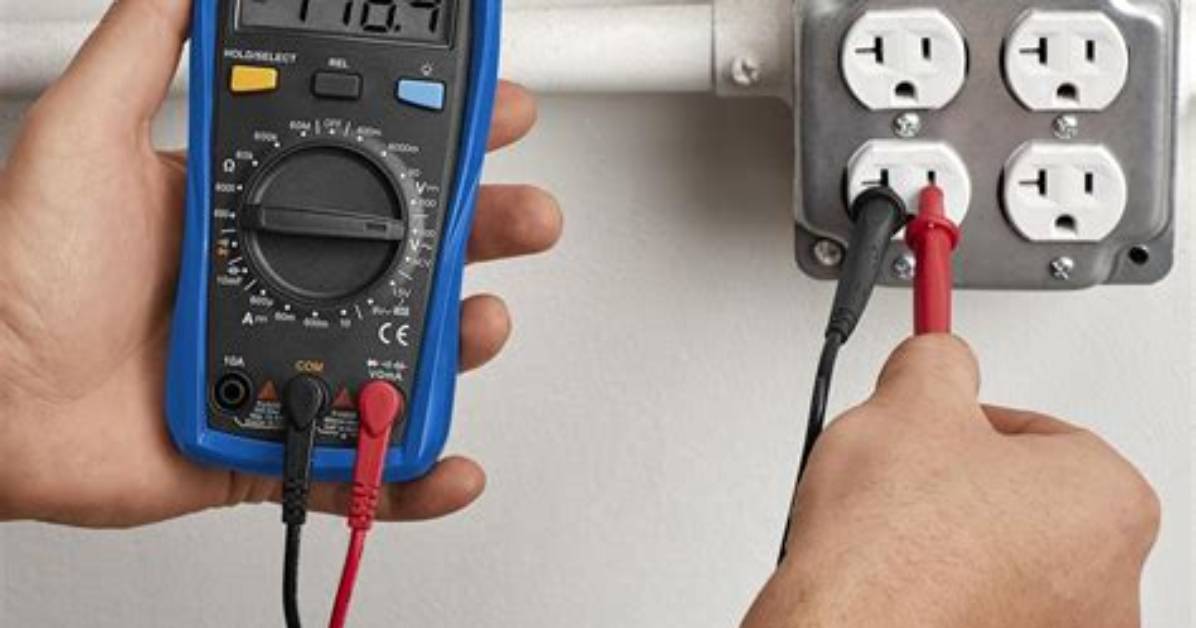

The 10A terminal lacks even that basic protection. It connects directly to a bent-wire resistive current shunt soldered to the board. If an inexperienced operator sets the dial to voltage but leaves the red probe pushed into the 10A terminal, placing those probes across an automotive battery or a wall receptacle creates a dead dead-short. The wire shunt and the copper PCB traces instantly heat past their melting thresholds, leading to melted plastic, charred traces, and burned fingers.
